Mobile Clients in OpenShift

Introduction

Mobile Clients in OpenShift allow you to perform Cloud Native Mobile App Development using OpenShift as the back-end for your mobile apps. A Mobile Client is a representation of the mobile app that you are developing locally. Mobile Clients allow you to bind your mobile app to mobile services such as Identity Management, Push Notifications, Mobile Metrics and others. This makes many of the common tasks associated with mobile development much easier and quicker to implement.

A configuration file named mobile-services.json acts as the link between your Mobile Client in OpenShift and your local app in development. This configuration file is used to initialize the AeroGear SDK in your mobile app and to connect to the back-end Mobile Services you have provisioned on OpenShift.

Registering a Mobile Client

To use services with a mobile app, a Mobile Client must first be created to represent the mobile app in OpenShift. Once the Mobile Client has been registered, it can then be bound to services to allow the mobile app to interact with these services.

For information on how to register a Mobile Client in OpenShift, see Getting Started.

Viewing Mobile Services

In order to use services with a mobile app, the Mobile Client associated with the app must be bound to services. In the list of Mobile Clients in the Overview view there is a summary of the number of services available to be bound to the Mobile Client and how many services have already been bound to the client.

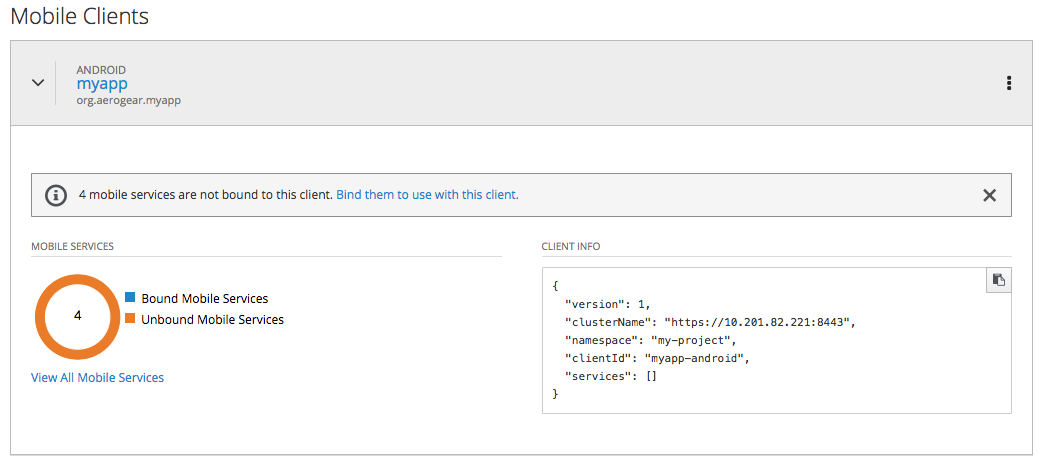

overview mobile clients expanded none provisioned

The Mobile Services tab in the Mobile Client view shows the provisioned services that are available to be bound to the Mobile Client. If a service has not yet been bound to a Mobile Client, a binding can be created by selecting the Create Binding button.

mobile clients services all unprovisioned

If a service is bound to the Mobile Client then details about the binding between the Mobile Client and the service can be seen when expanding the service. These details differ for each service.

mobile clients services all idm provisioned

Once a service has been bound to a Mobile Client, the configuration for the Mobile Client will be updated in the Overview view and the Mobile Client Configuration view. This configuration is used by your app to interact with the bound services.

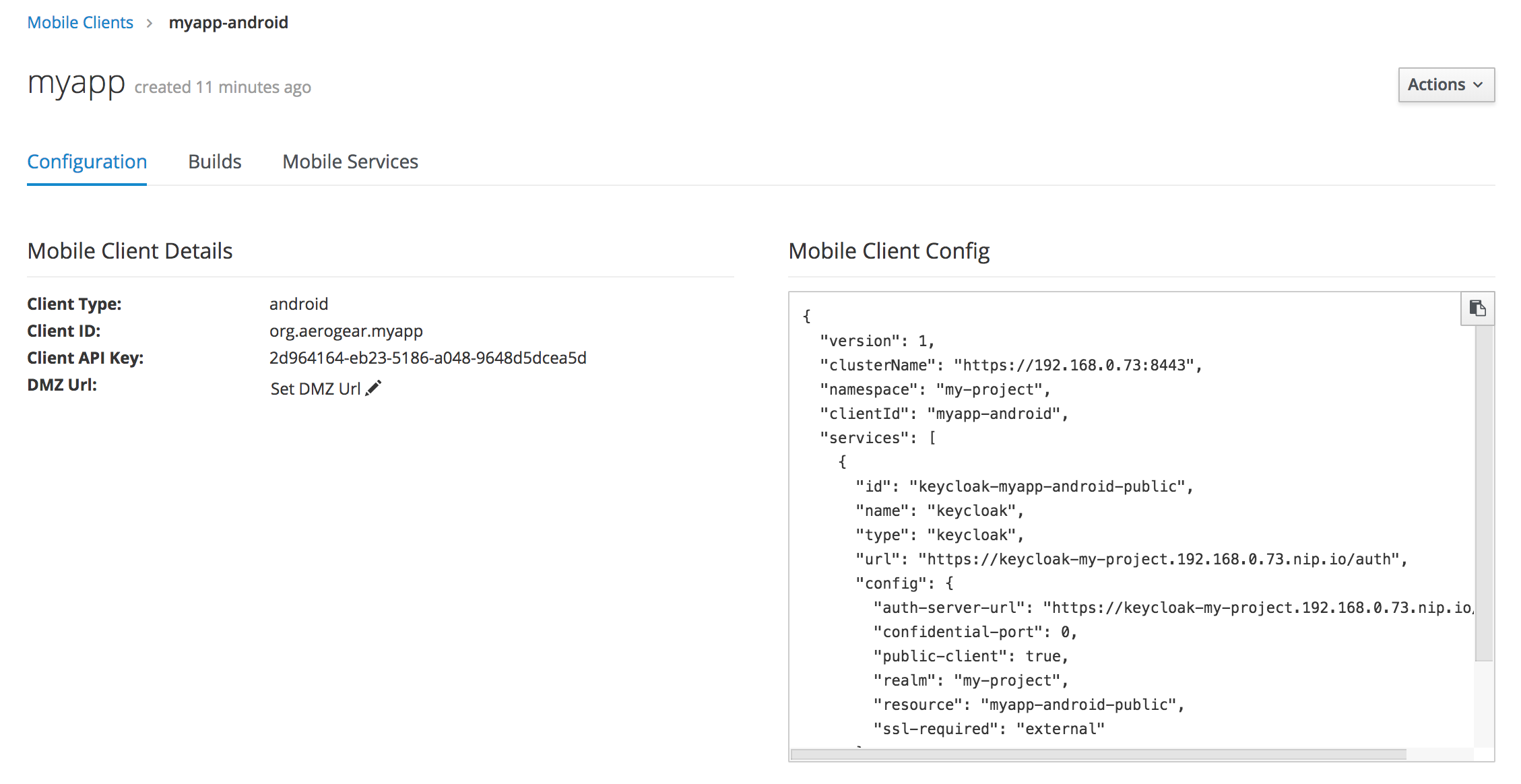

mobile clients configuration

For more information on binding Mobile Clients to services, see Getting Started.

Building Mobile Apps

The Builds tab in the Mobile Client view allows you to view the previous builds of the app, and triggers a new build of the app.

Provisoning a Mobile CI/CD Service

In order to build the Mobile Client app, you first need to provision a Mobile CI/CD service. If the service is not provisioned, use the link provided on the screen to browse all the available mobile services and provision a new Mobile CI/CD service.

mobile clients no service

For more details about how to provision the Mobile CI/CD service, please see Mobile CI/CD service guide.

Creating a Build

After the Mobile CI/CD service is provisioned, you need to create a new build config for the Mobile Client. You need to provide more information about the mobile app here depending on the platform. For example, the repo of the source code, the type of the build, the keys used to sign the app, etc.

mobile clients build config

For more information about how to configure the build config, please see the build config section of Mobile CI/CD.

Starting a Build

Once a build is configured, you can start a new build. You will be able to view the progress of the build from the OpenShift UI and access the full build log.

mobile clients build in progress

Downloading and Installing Apps

You can use the OpenShift UI to deploy a mobile app by downloading the binary directly to the mobile device. This binary can be downloaded for any successful build in the build history.

Once the build has completed you can then press the Download button and you will be presented with a QR code. Applications to scan QR codes are available in Google Play for Android or the App Store for iPhone. Once the QR code has been scanned, it will open the download URL in the device and the application will download.

Available Mobile Clients

If you do not have a QR code scanner you can also download the artifact from the URL in the OpenShift web console. Once downloaded connect a device to your local machine.

  • For iOS applications open XCode and navigate to Window > Devices and Simulators. Here you can install your mobile application by pressing + button at the bottom, then choose your download IPA file for installation.

  • For Android applications move the APK file into the device directory. On your device locate and select the APK file and select install.

    You may need to enable the installation of apps from unknown sources on Android devices before installing from an APK.

Introduction to the AeroGear SDK

After you have registered a Mobile Client, bound the Mobile Client to a mobile service, and downloaded the mobile services configuration file, you can start developing your mobile app using mobile services.

The AeroGear SDK supports the following platforms:

Android

For information about how to develop Android apps, see Android Documentation.

  1. To use the SDK add jcenter to the build.grade file in your project’s root directory

    allprojects {
        repositories {
            jcenter() // <-- Add This line
            google()
        }
    }
  2. In the build.gradle file of your app you can begin adding dependencies provided by the SDK.

    dependencies {
        ...
        implementation 'org.aerogear:android-core:1.0.0'
        implementation 'org.aerogear:android-push:1.0.0'
        implementation 'org.aerogear:android-auth:1.0.0'
        implementation 'org.aerogear:android-security:1.0.0'
    }
  3. For push you also need to add a dependency to the Firebase SDK:

    dependencies {
        ...
        implementation "com.google.firebase:firebase-messaging:[version]"
    }
To implement certificate pinning in the individual SDKs, see the certificate pinning guide.

For Service specific steps, see:

iOS

For information about how to develop iOS apps, see iOS Documentation.

  1. In your project directory (the directory where your .xcodeproj file is), create a plain text file named Podfile (without any file extension) and add the lines below. Replace YourTarget with your actual target name.

    source 'https://github.com/CocoaPods/Specs.git'

    platform :ios, '9.0'
    use_frameworks!

    target :'YourTarget' do
        ## Require one of the AeroGear SDK's here
        pod 'AGSCore', '1.0.0'
        pod 'AGSPush', '1.0.0'
        pod 'AGSAuth', '1.0.0'
        pod 'AGSSecurity', '1.0.0'
    end
  2. Then run the following command:

    $ pod install
  3. Open up .xcworkspace with Xcode and start using the SDK.

    Do not use .xcodeproj. If you open a project file instead of a workspace, dependencies will not be correctly configured.
  4. Import the SDK you want to use in the application. For example:

       import AGSAuth

For Service specific steps, see:

Cordova

For information about how to develop apps using Cordova, see Cordova Documentation.

  1. Open a terminal and navigate to your appplication project root folder.

  2. Install the AeroGear SDK base project:

    npm install @aerogear/app
  3. In your application, import and call the "init" method:

    import { init } from "@aerogear/app";

    const aerogearConfig = {
        // Replace with your own configuration
    };

    init(aerogearConfig);

For Service specific steps, see:

Xamarin

For information about how to develop apps using Xamarin see Xamarin Documentation.

  1. In your VisualStudio project expand Dependencies > NuGet

  2. Click on Add packages…​

  3. Select AeroGear.Mobile.Core and depending on your target platforms:

  4. for Android:

    1. also pick AeroGear.Mobile.Core.Platform.Android

    2. Initialize Core (for Xamarin.Forms):

      var app = new App();
      MobileCoreAndroid.Init(app.GetType().Assembly,ApplicationContext);
      LoadApplication(app);
    3. Initialize Core (for Legacy Xamarin):

      MobileCoreAndroid.Init(ApplicationContext);
  5. for iOS:

    1. also pick AeroGear.Mobile.Core.Platform.iOS

    2. Initialize Core (for Xamarin.Forms):

      var app = new App();
      MobileCoreIOS.Init(app.GetType().Assembly);
      LoadApplication(app);
    3. Initialize Core (for Legacy Xamarin):

      MobileCoreIOS.Init();

For Service specific steps, see:

API Reference Documentation

SDKs for our Mobile Services are available for a variety of platforms, including Android, iOS, Cordova & Xamarin. These SDKs will help simplify your mobile and modern application development needs, leveraging OpenShift’s Container technology to provide a secure, scalable backend platform.

Click on the to see the API reference documentation:

Platform Core Identity Management Push Notifications Device Security

Android

iOS

Cordova

Xamarin
